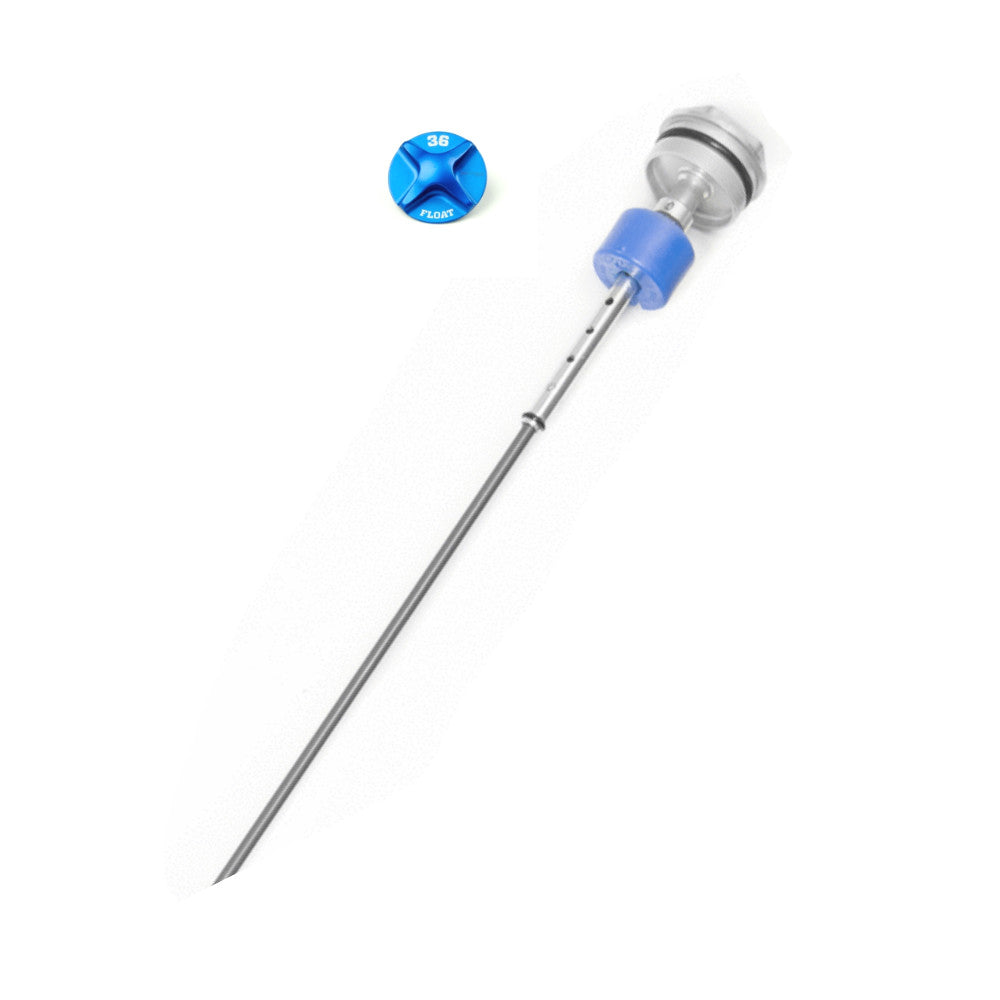

Fox Air Topcap Assembly 36mm 2015-2017
RRP$129.00 $89.00

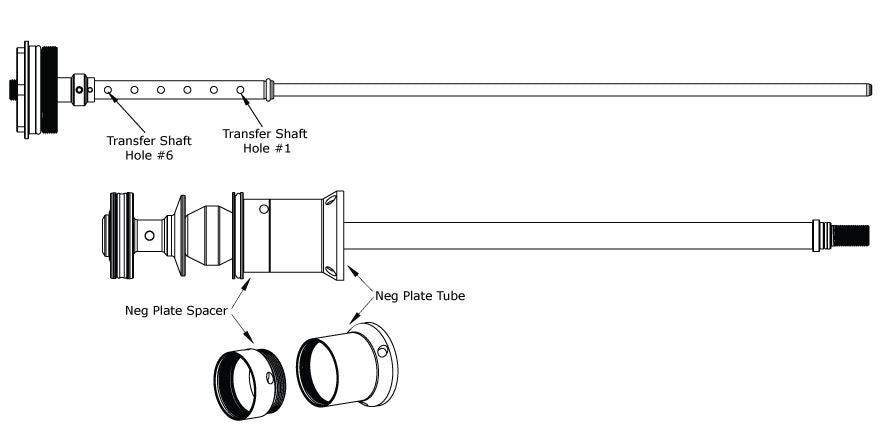

Genuine Fox air topcap assembly for 2015, 2016 and 2017 Fox 36 forks. (not suitable for previous generation 36's). Change the travel in your 36's or, upgrade from a TALAS system with the topcap and shaft kits. See here for full info from Fox. These topcap assemblies are available as follows, however all options will suit all travels, as you simply need to change the transfer hole in which the bolt is configured in.
ALL 3 OPTIONS BELOW SUIT ALL TRAVELS - Adjust height accordingly. :)
| 820-05-304-KIT | Service Set: Topcap Assy, FLOAT NA, 36, 1st Transfer Hole |
| 820-05-305-KIT | Service Set: Topcap Assy, FLOAT NA, 36, 2nd Transfer Hole |
| 820-05-306-KIT | Service Set: Topcap Assy, FLOAT NA, 36, 3rd Transfer Hole |
Includes the topcap, 2 x Blue volume spacers. valve cover. Seals are pre-installed.
| 160mm Maximum Travel Configurations 26, 27.5, and 29" | |
| 160mm | Transfer Hole #1/ No Spacers |
| 150mm | Transfer Hole #2/ 1 Spacer |
| 140mm | Transfer Hole #3/ 2 Spacers |
| 130mm | Transfer Hole #4/ 3 Spacers |
| 120mm | Transfer Hole #5/ 4 Spacers |
| 110mm | Transfer Hole #6/ 5 Spacers |
| 160mm Maximum Travel Configurations 26, and 27.5" | |
| 180mm | Transfer Hole #1/ No Spacers |
| 170mm | Transfer Hole #2/ 1 Spacer |
| 160mm | Transfer Hole #3/ 2 Spacers |
| 150mm | Transfer Hole #4/ 3 Spacers |
| 140mm | Transfer Hole #5/ 4 Spacers |
| 130mm | Transfer Hole #6/ 5 Spacers |
Compatibility:
- 2015-2017 36 FLOAT 170mm and 180mm forks can be reduced in travel down to 130mm.
- 2015-2017 36 FLOAT 160mm forks can be reduced in travel down to 110mm.
- 2015-2017 36 FLOAT 160mm forks CANNOT be extended past 160mm of travel.
- 2015-2017 36 FLOAT 180mm forks CANNOT be extended past 180mm of travel.
- 2015-2017 36 FLOAT 170mm forks can be extended to 180mm of travel.
