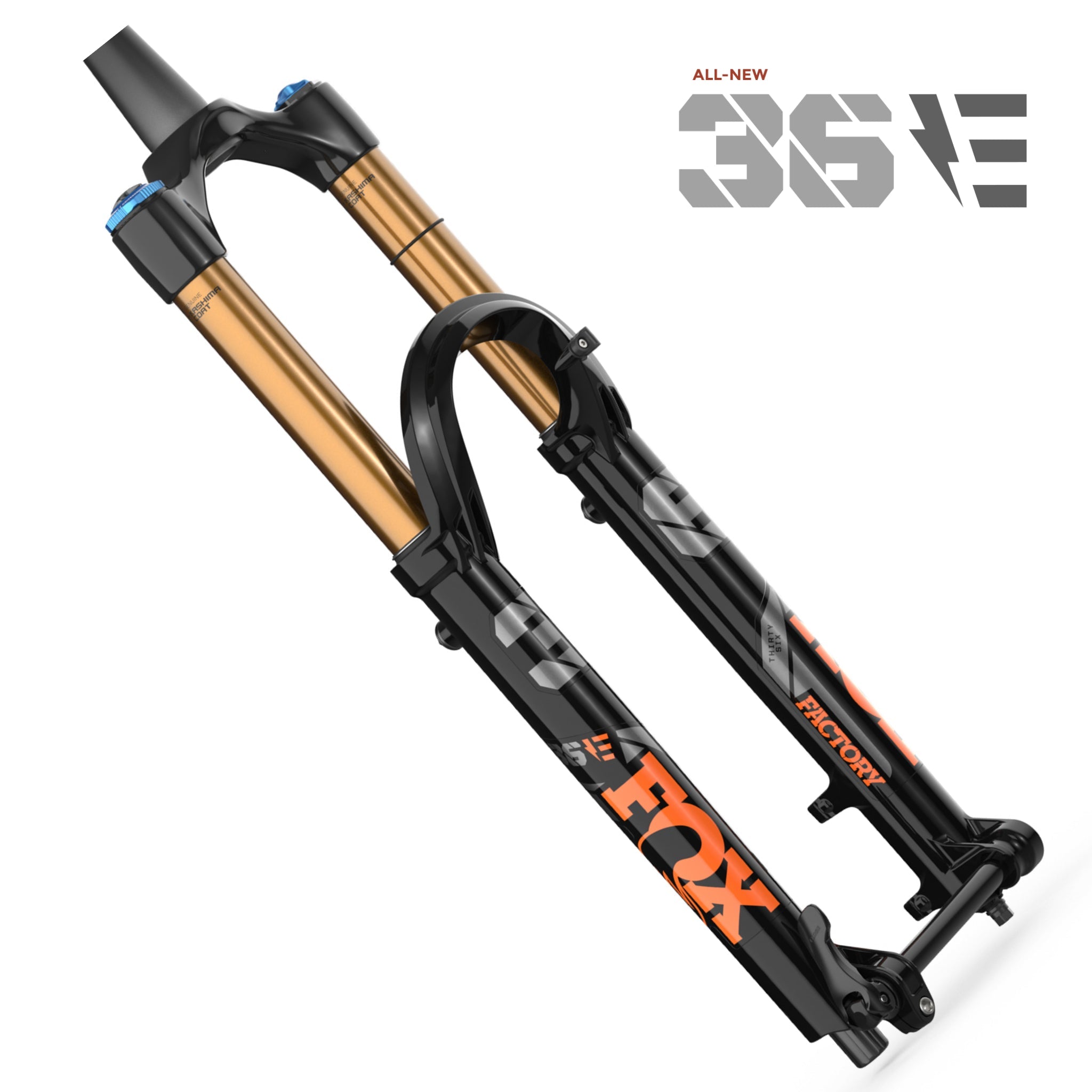

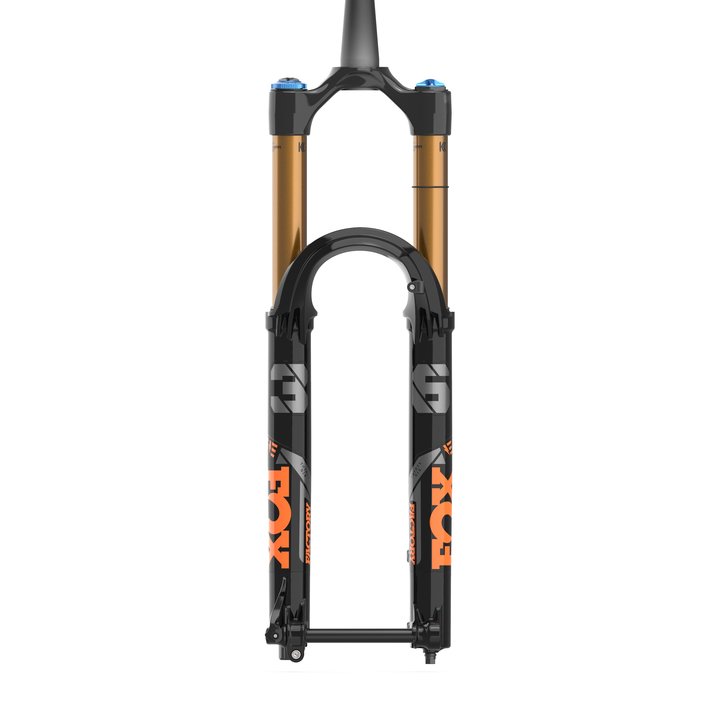

Fox 36 Float 27.5" Factory 2023 Shiny Black E-Optimized

Our price $1,729.00

Part number FF91021105

SRP $1,859.00 GRIP2

Optimized for E-bikes, and aggressive trail riding, the new 2023 36-e features an updated crown, and reduced weight.  The 36-e chassis is thicker- walled than the standard 36, and has a specific e-tune damper.

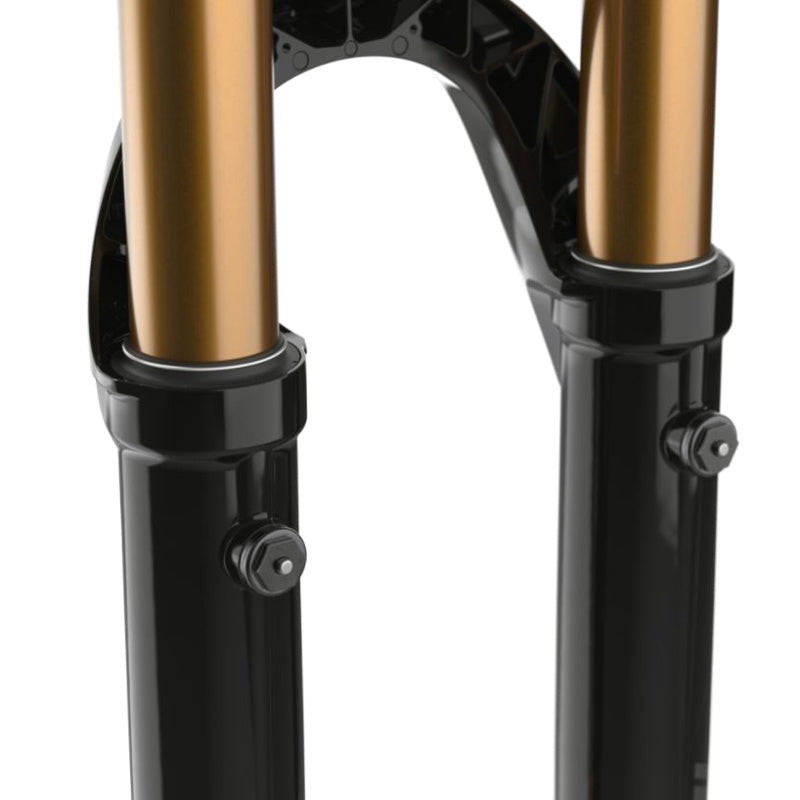

With the new 36-e, Fox wanted to increase the smoothness, stiffness, and tune-ability of their market-leading fork.  On the smoothness front, an all-new chassis has three key features.  The new floating axle design allows for precise alignment of the hub and the upper and lower fork legs, ensuring the smoothest tracking of terrain.  New channels in the back of the lower legs increase the air volume in the lowers to reduce the amount of unintended pressure ramping, as well as allow more oil flow to the dust wiper foam rings and bushings.  Finally, the bleed valves here allow for atmospheric pressure equalization and release of pressure build-up from long, rough runs, improving small bump sensitivity and responsiveness.



Specifications:

  • Spring: EVOL air spring.

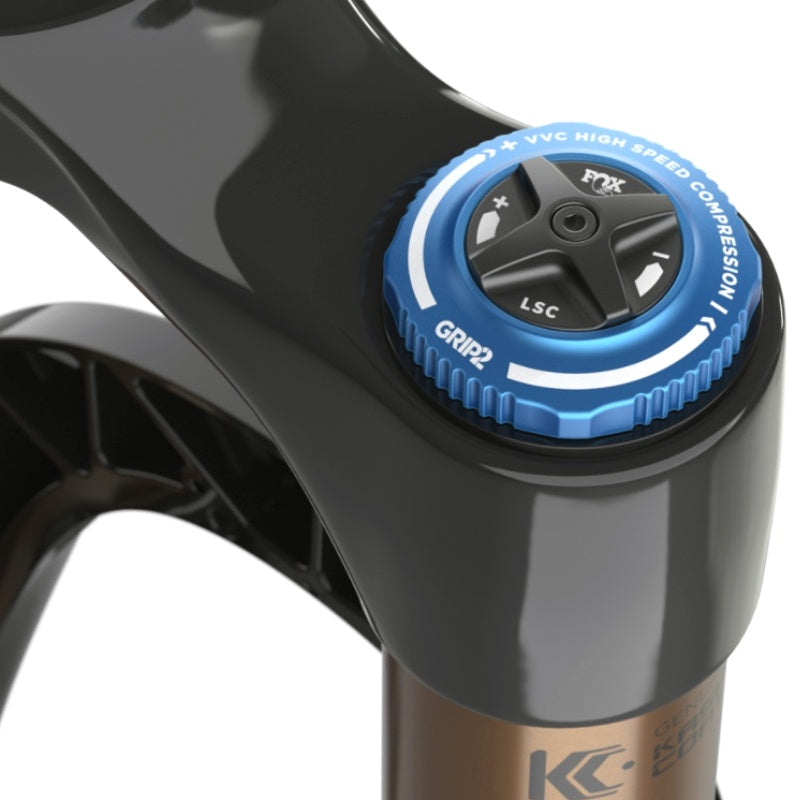

  • Damper GRIP2:  GRIP 2 E-Tune with VVC, external HSC / LSC, & HSR / LSR.
  • Lowers: 15mm x 110mm QR
  • Wheel size: 27.5"
  • Offset:  44mm
  • Colour:  Shiny Black
  • Optional bolt-on mud guard available Std size and XL size


    Need a 2023 Fox 36 with different travel?  We can supply the MY23 36 E-Bike at  130mm, 140mm, 150mm or 160mm.  No extra charge.  Just ask!



    Find your Fox manual here, parts list here, specifications here and volume spacer configuration information here.

    Find service information for your Fox suspension here.
