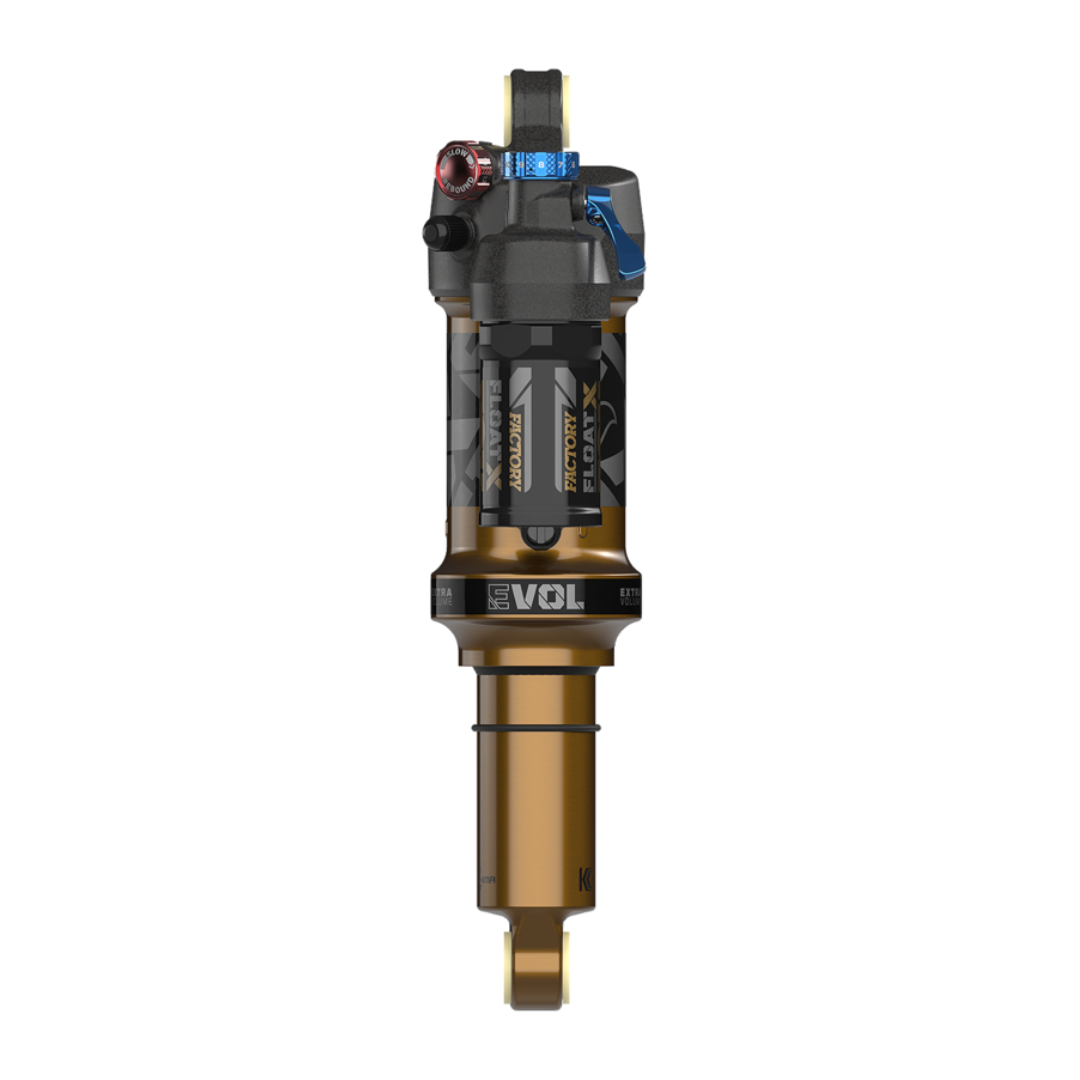

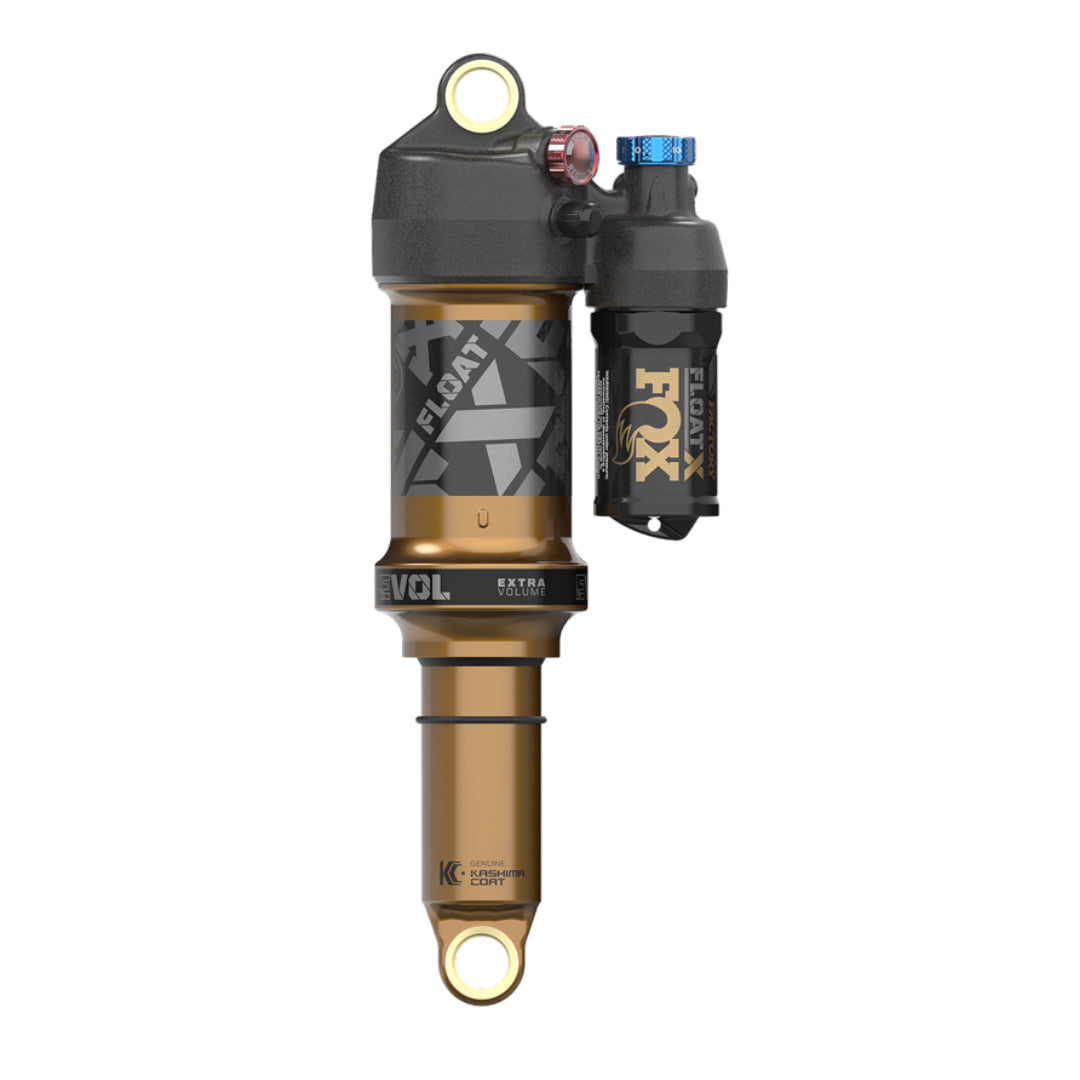

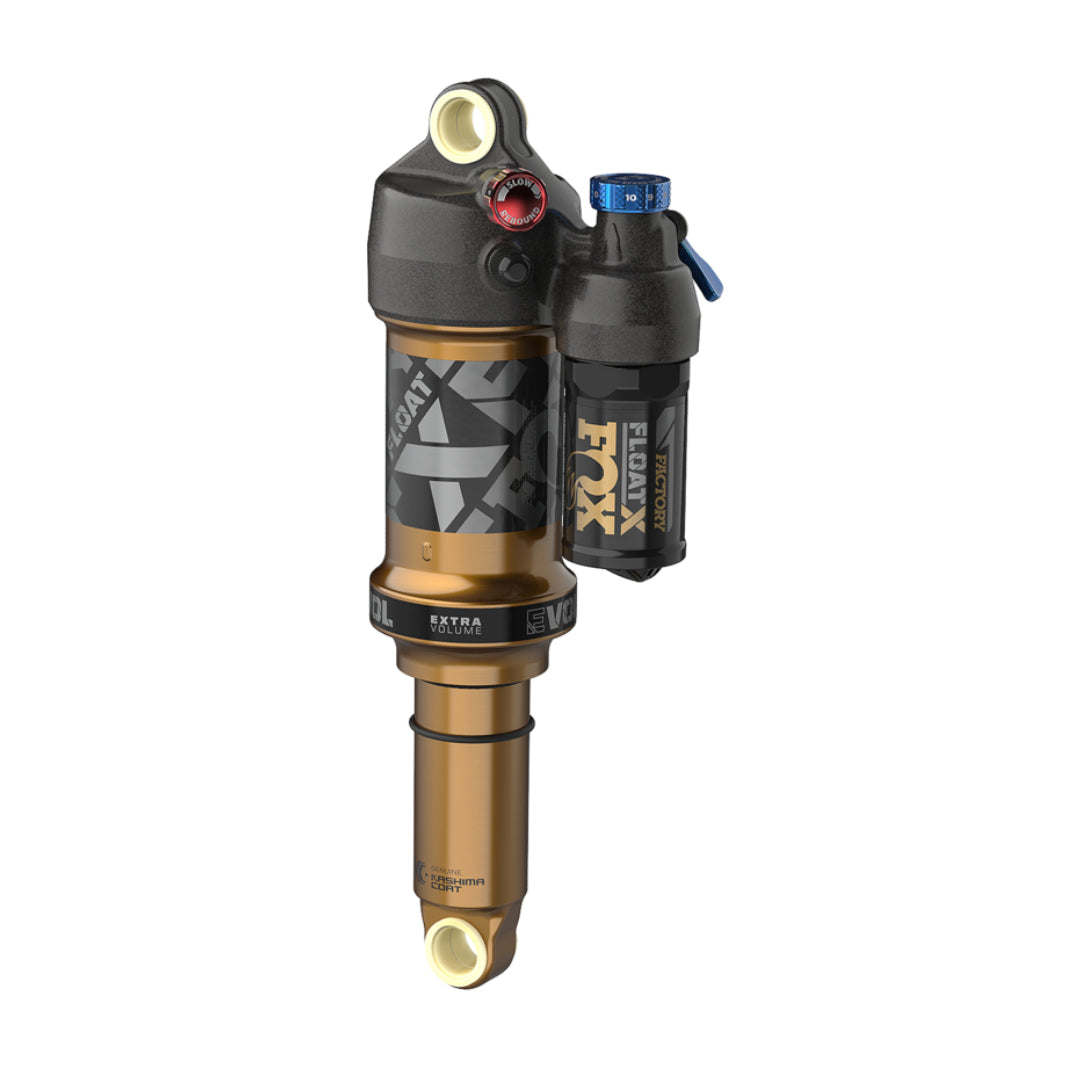

Fox Rear Shock Float X Factory Standard 2025

SRP $1099 AU

Specifications, click here.

The Master of All-Mountain. From aggressive trail to enduro, the advanced damping, fade free performance and class-leading durability of FLOAT X makes it the versatile and lightweight choice for All-Mountain riders earning their descents.

Tool-free adjustment for compression and rebound means the FLOAT X can be quickly and easily set up or tuned for the current trail and riding conditions. The numbered 11-click low-speed compression dial and 2-position (Open or Firm) lever switch run on independent circuits, giving all-mountain riders the descent tuneability they need with the convenience of a single switch for climbing.

Each size of the FLOAT X is paired with a specific length of piggyback reservoir, giving the shock just the right amount of volume for maximum performance-to-weight ratio. Paired with the large EVOL air chamber, ride feel remains consistent over long descents. A hard-hitting shock geared for the gamut of aggressive trail and all-mountain riding while fitting a wide range of frame designs and geometries.

Specs & Features

• High-flow piston architecture for smooth compression and wide range of tuneability
• Reservoir with secondary compression circuit for enhanced bump sensitivity, tire grip, and descending performance
• Base Valve for lower IFP pressures without cavitation
• Volume spacers in precise increments for ultra-fine air spring tuning
• MCU bottom-out bumper for smooth end-stroke progressivity
• Numbered tool-free 12-position single-turn LSC (Low Speed Compression) adjuster
• Independent firm mode circuit via on-the-fly flickable 2-position adjuster
• Wide range of rebound adjustment to suit all preferences and terrains
• Optimized reservoir lengths per shock size for reduced weight and improved fitment
• Hydraulic top-out feature to eliminate harshness at full extension
• Optimized air volumes for lower operating pressures and winder range of tuning
• Convenient air valve location for frame fitment and pump access
• Bearing hardware compatible both sides
• Kashima coating
• Fox Mounting Hardware. Sold separately
• Available in Metric sizing only:  190x45, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65,
• Trunnion sizing also available: 185x52.5, 185x55, 205x60, 205x62.5

Find the Fox Tuning Guide here.
