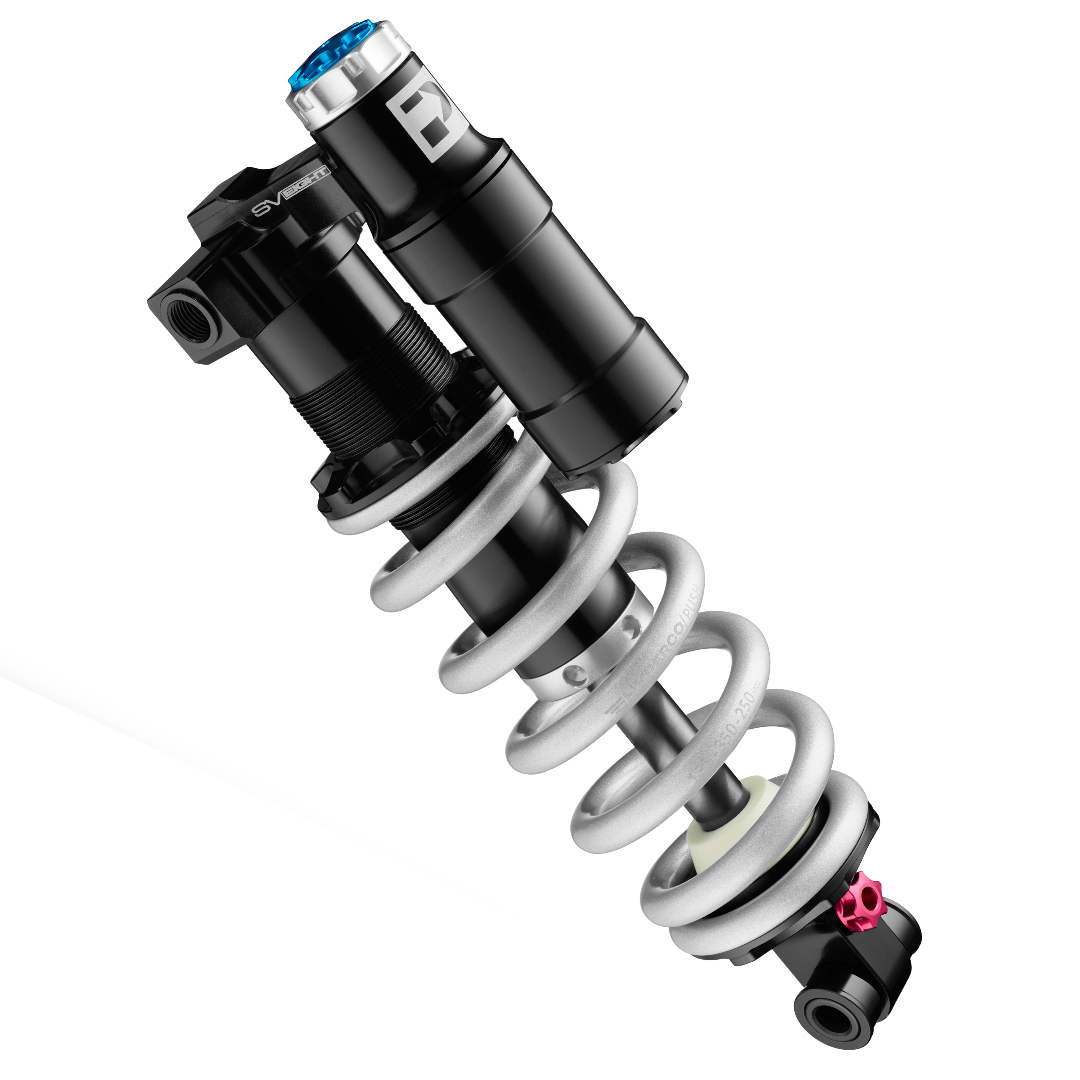

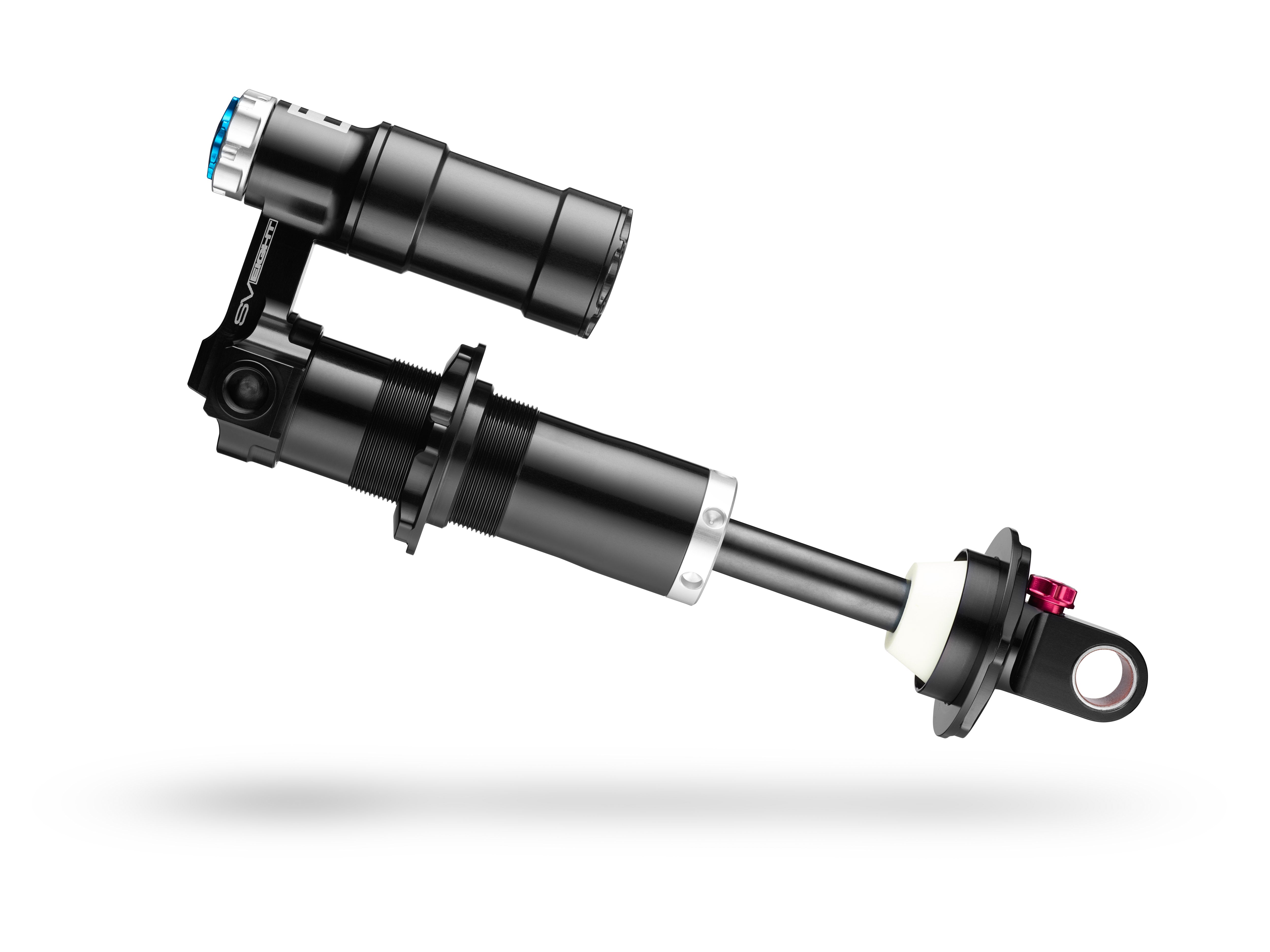

PUSH SV8 Rear Shock 2024 - Metric Trunnion

Push's new SV8 shock brings their highly regarded technologies to the broader market, with a new single valve architecture shock featuring 28 clicks of each High and Low Speed Compression damping as well as 18 clicks of Low Speed Rebound damping. Suitable and applicable to all bikes where fitment allows.

The SV8's adjustments are all via tool-free external dials.

The shock is packaged in a way to minimize weight and maximize frame clearance on many modern mountain bike frames. SV8 coil shocks feature standardized mounting eyelets compatible with both DU (Metal) or Polymer bushings and 3, 5 or 7pc hardware mounting kits from all major brands. The SV8 is also compatible with Push's Hypercoil spring, and features spring retainers compatible with aftermarket springs utilizing a 35mm (1.38”) inside diameter. (ie - Fox Springs)

The tech specs, in brief:

• Manufactured in Colorado at PUSH Industries
• Damping Optimised: New bridged piston design and compression characteristic which aids in isolating rider induced movements.
• Hydraulic Bottom Out: Kicking in for the final 15% of travel.
• Two tune options. A-Tune (For riders using 300-500lb spring). B-Tune (For riders using 525-700lb spring)
• Adjustable Stroke: Travel chip system, allowing the shock stroke to be easily adjusted in 2.5mm increments to ensure the exact match to frame specification.
• E-MTB ready with optimized steel shaft
• Metric Sizes as listed (185mm and 205mm Trunnion)
• Spring Sold Separately
• Warranty renewal at annual service
