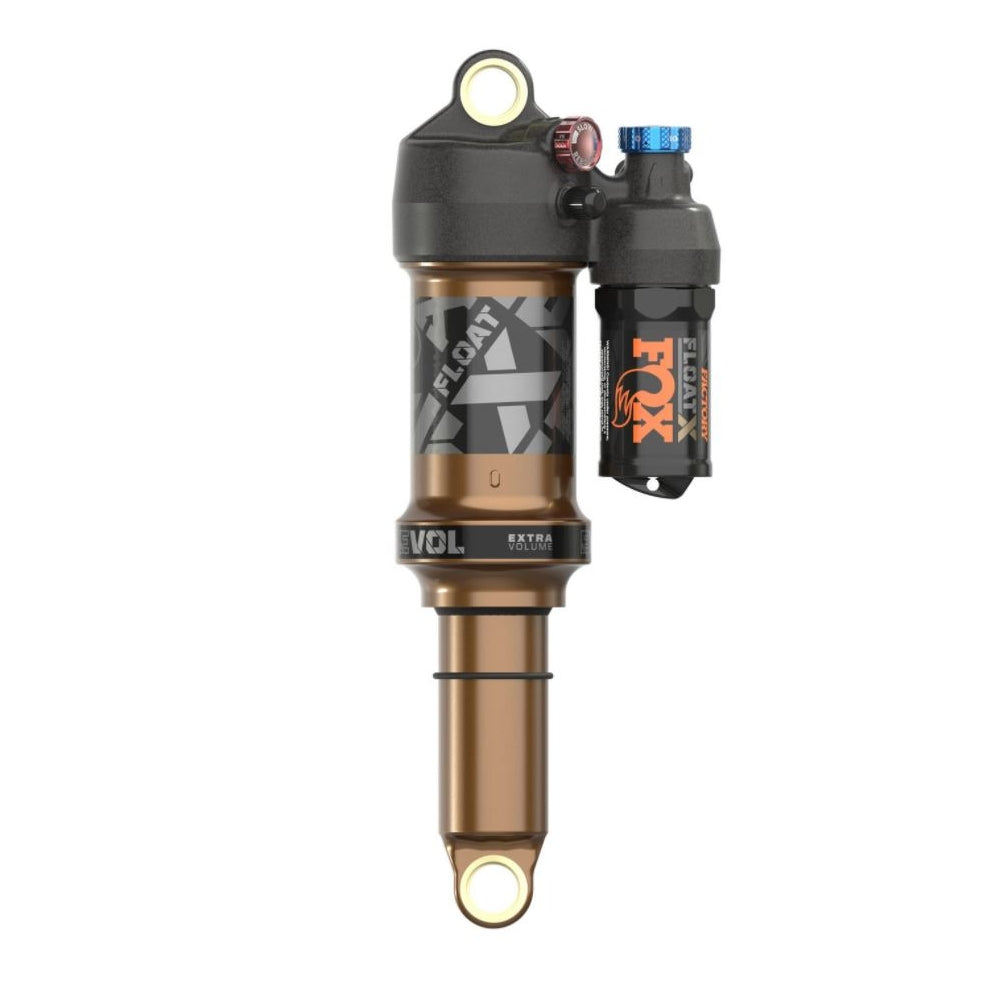

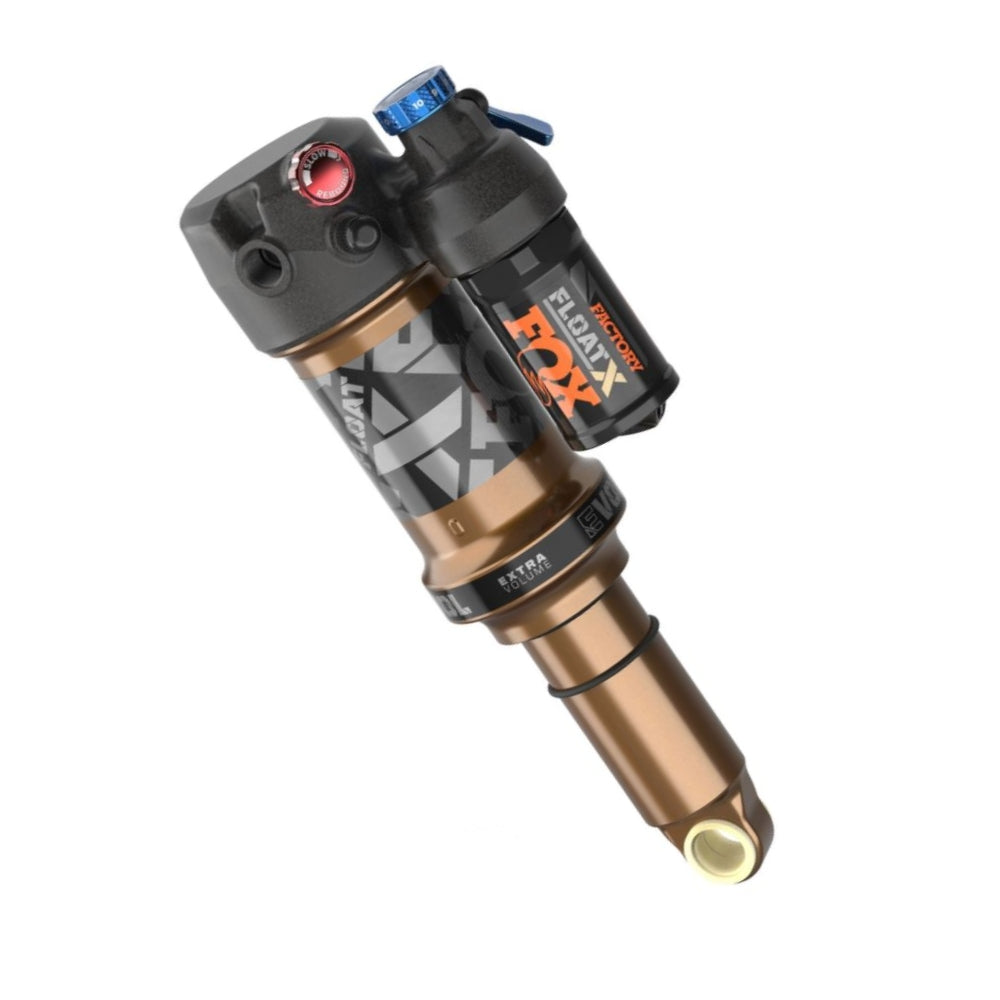

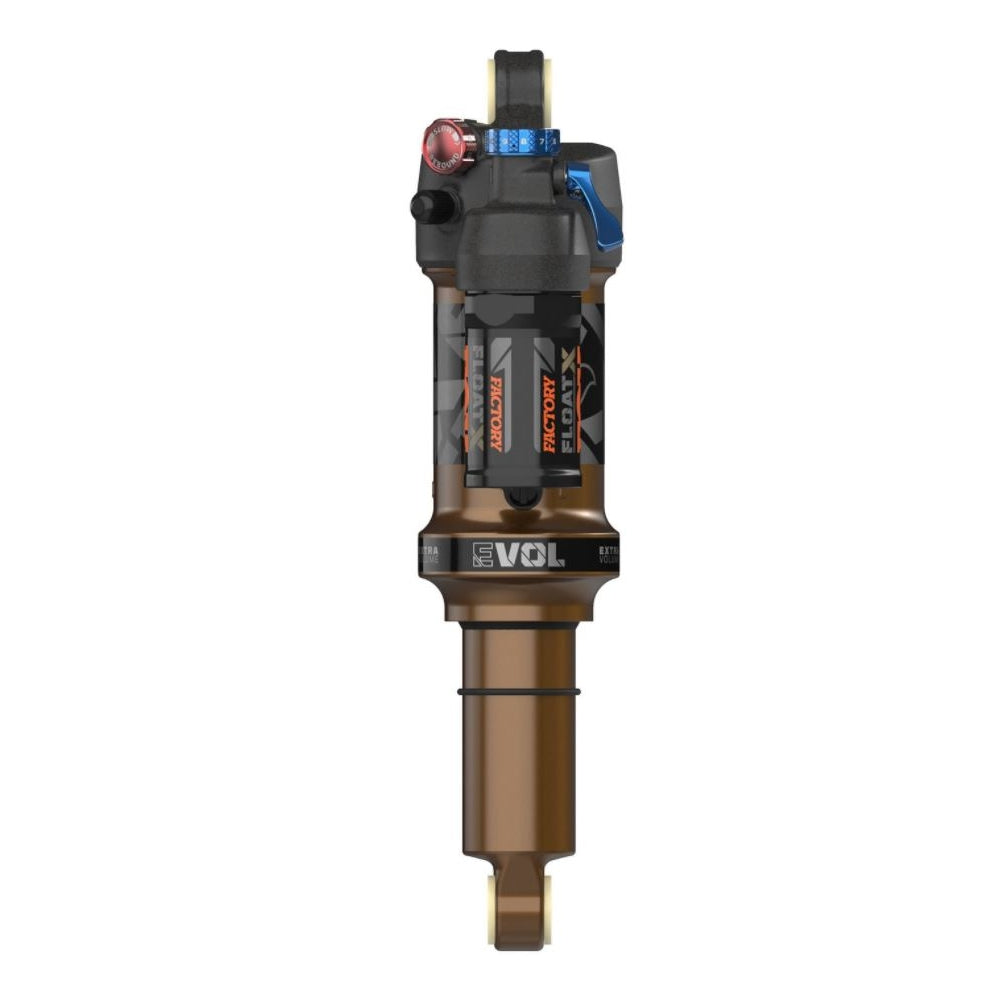

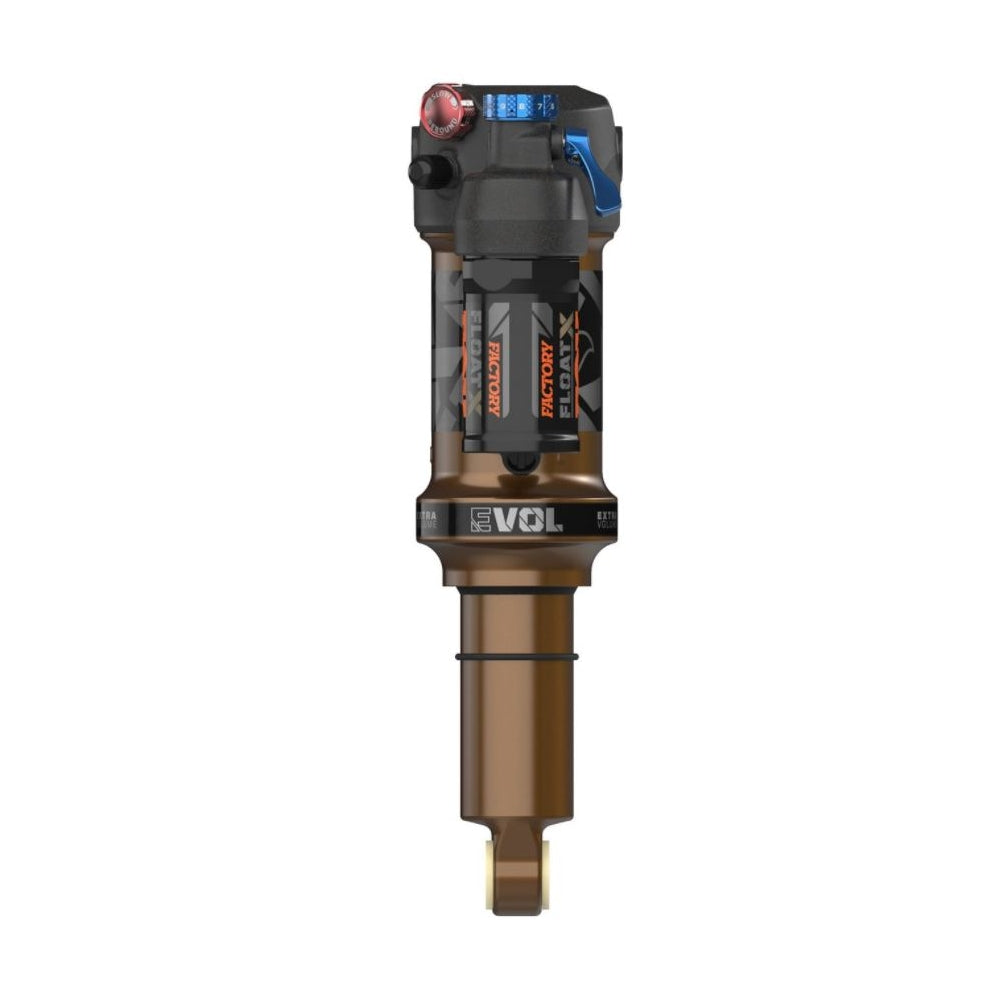

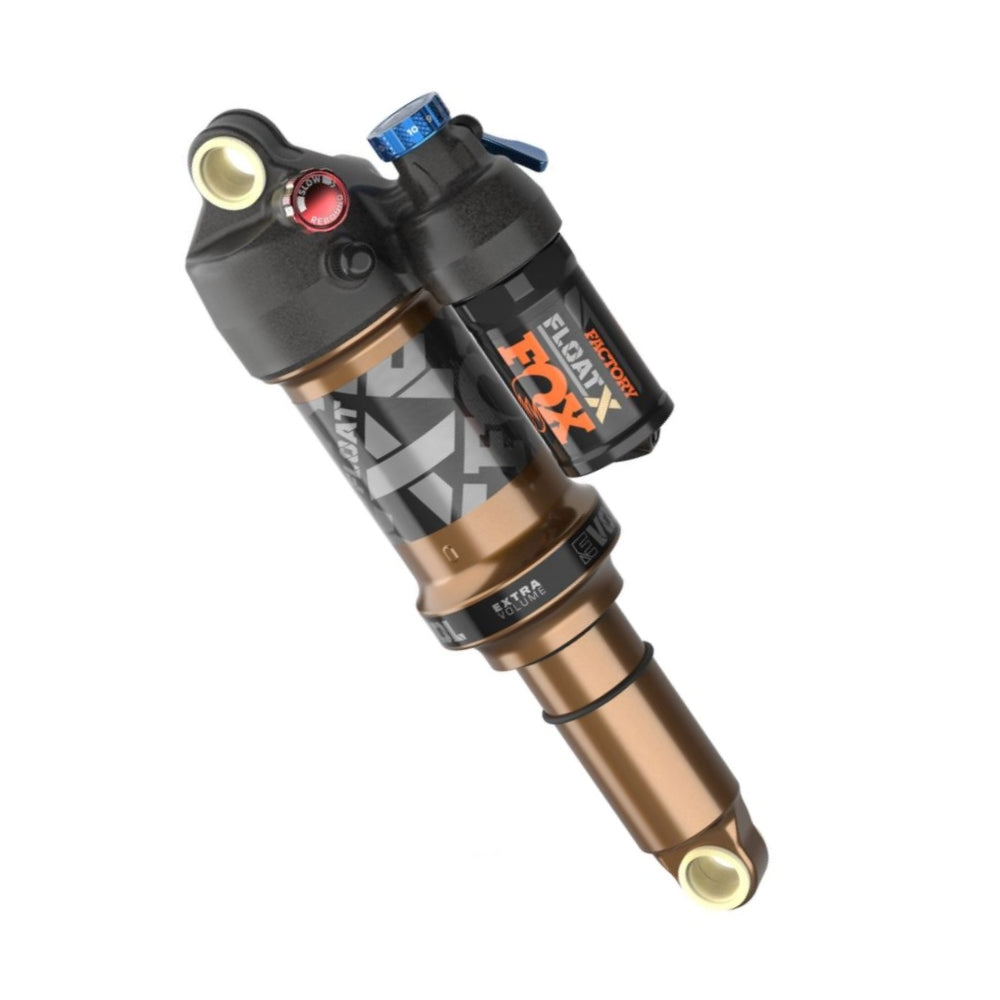

Fox Rear Shock Float X Factory 2022_23 - 230 x 57.5mm

SRP $969

Specifications, click here.

Heavyweight features in a lightweight package!

An all new shock from Fox!  Designed specifically to meet the demands of aggressive trail riders, the new Float X combines sophisticated damping and fade free performance with incredible light weight and outstanding structural integrity.

If you're in need of a compact shock with great performance and adjustability, the all new Float X is your ticket.  With tool free low speed compression, rebound and climb switch all within easy reach, the Float X offers greater consistency and performance than inline shocks when the trail gets rowdy but keeps things light and tight.  A new volume spacer design allows for smaller 0.1 cubic inch adjustments for finer tuning of bottom out support while the new high-flow piston design keeps things plush on square edge hits.

SPECS:

• ALL-NEW chassis and damper
• High-flow main piston

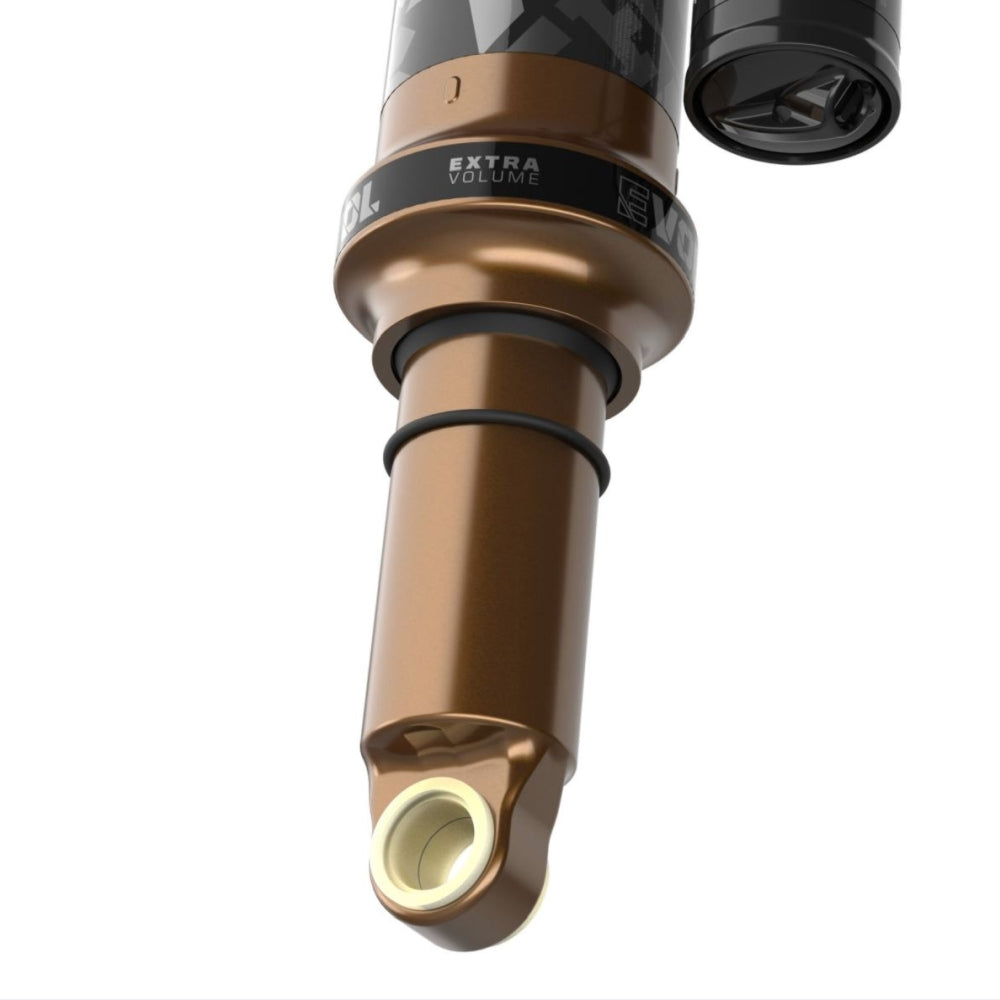

• Volume spacers with smaller increments
• MCU bottom out bumper

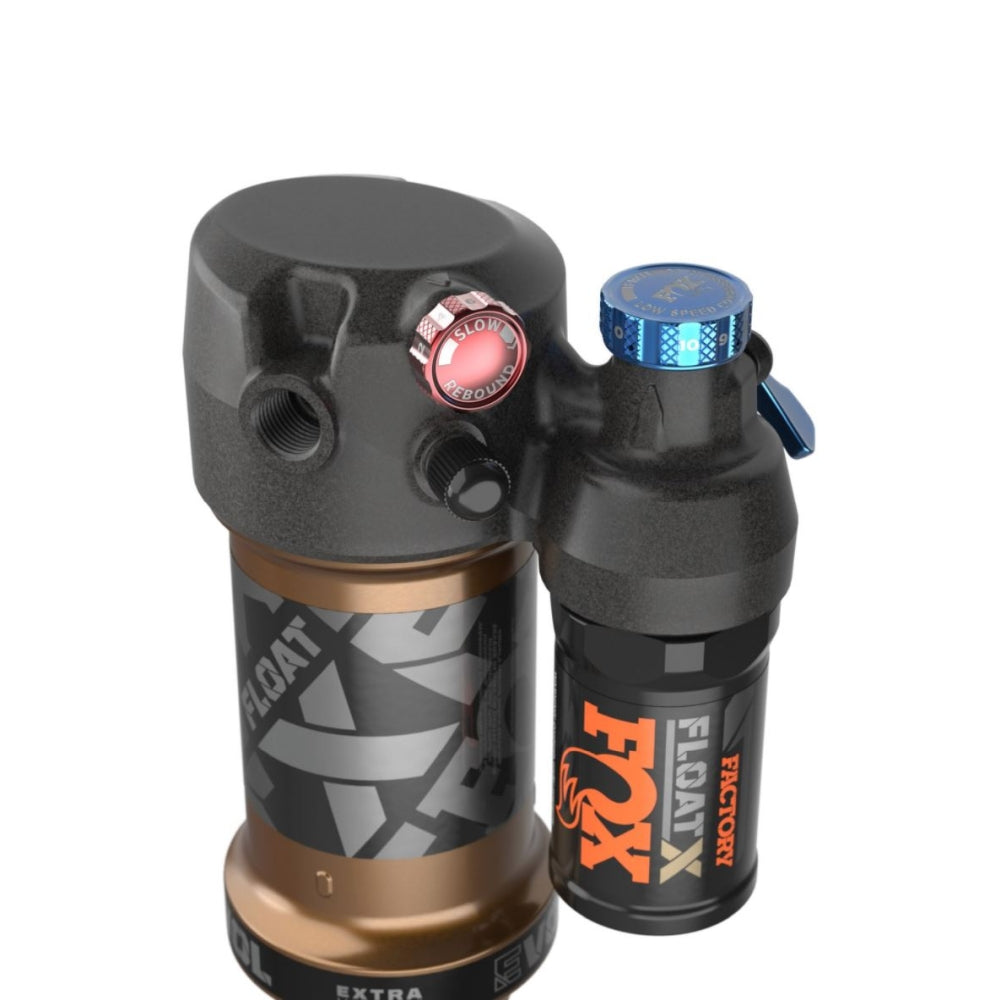

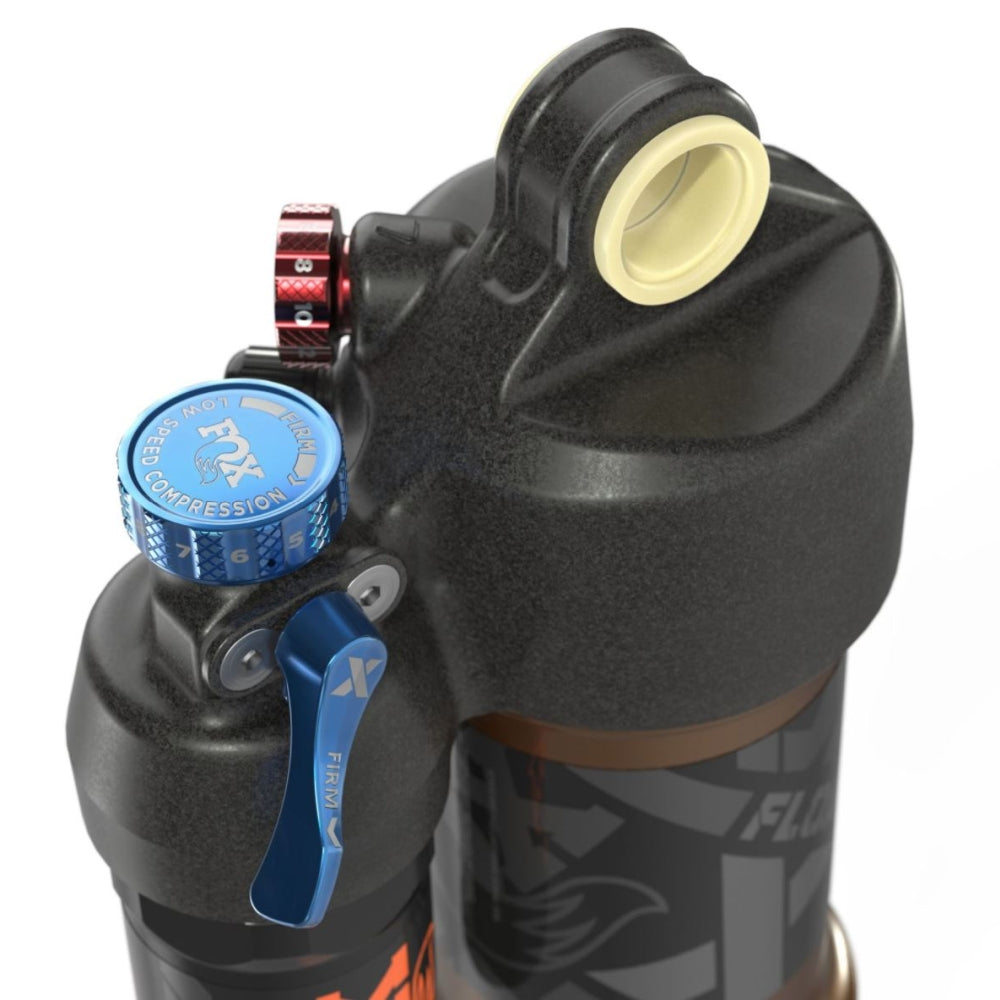

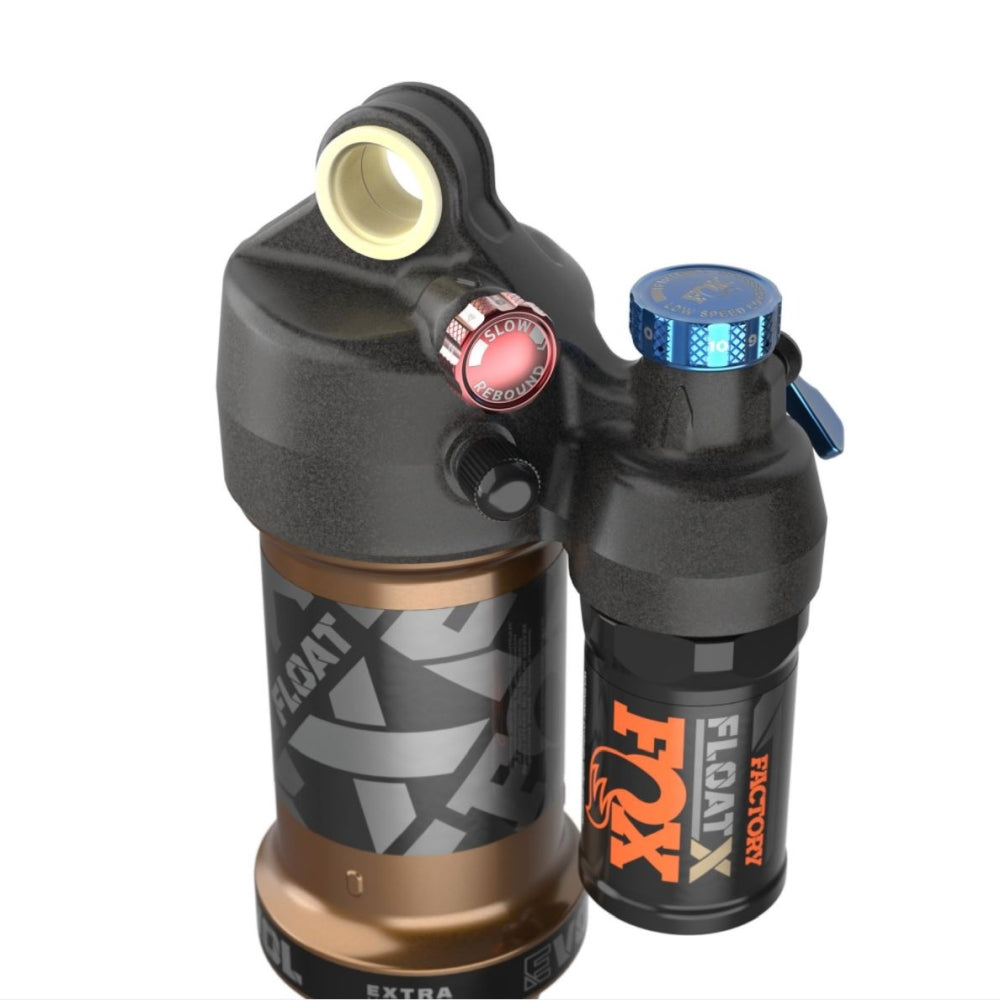

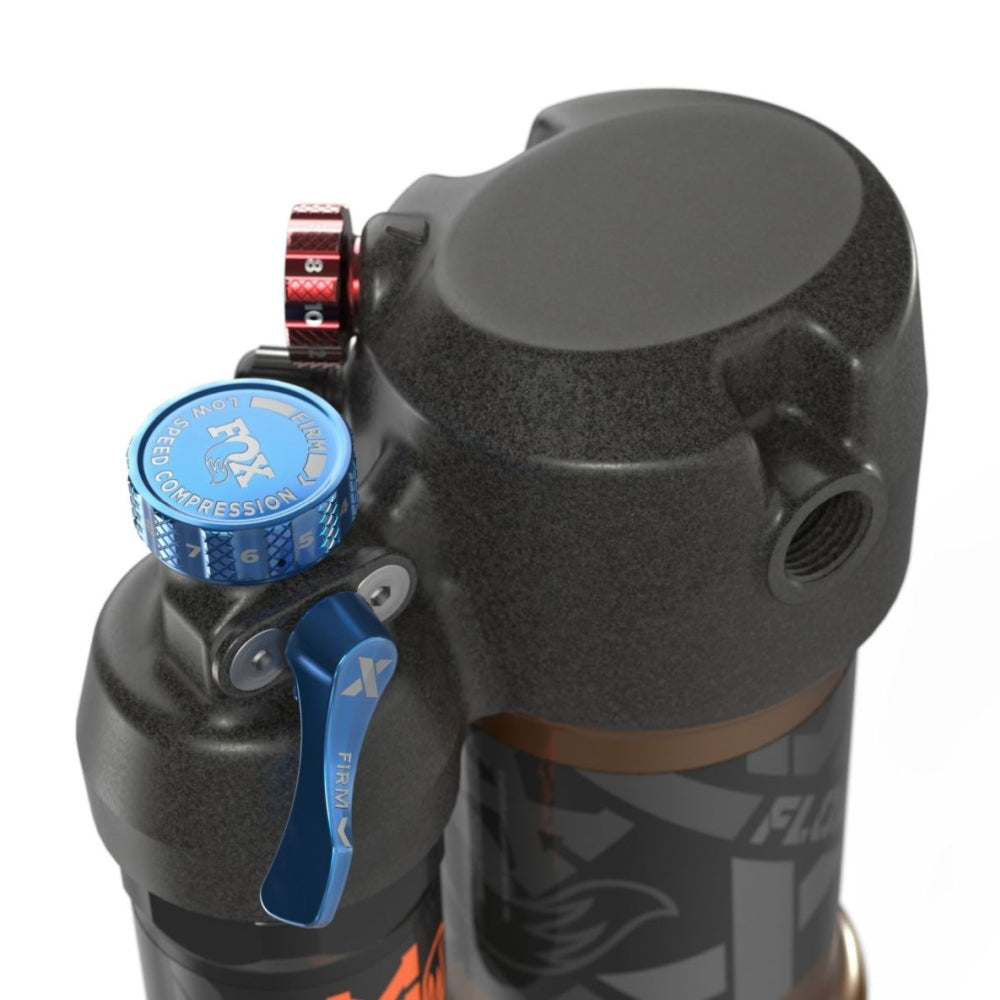

• Numbered, tool-free 10 position single-turn Low Speed Compression (LSC) adjuster
• Independent firm mode circuit - Clockable 2-position lever
• Increased rebound adjuster range (over DPX2)

• Hydraulic top out feature
• Reduced damper noise
• Larger air sleeve bore reduces average rider pressure by 40psi vs. DPX2
• Bearing hardware compatible on both sides
• Air valve locations offers improved frame fitment and pump access
• Tune Information (air): 0.4 Volume Spacer
• Tune Information (damper): CL+ PRM Rezi LMB2
• 230 x 57.5 (Can be internally adjusted to 230x60, 230x62.5 or 230x62.5)

979-01-049
