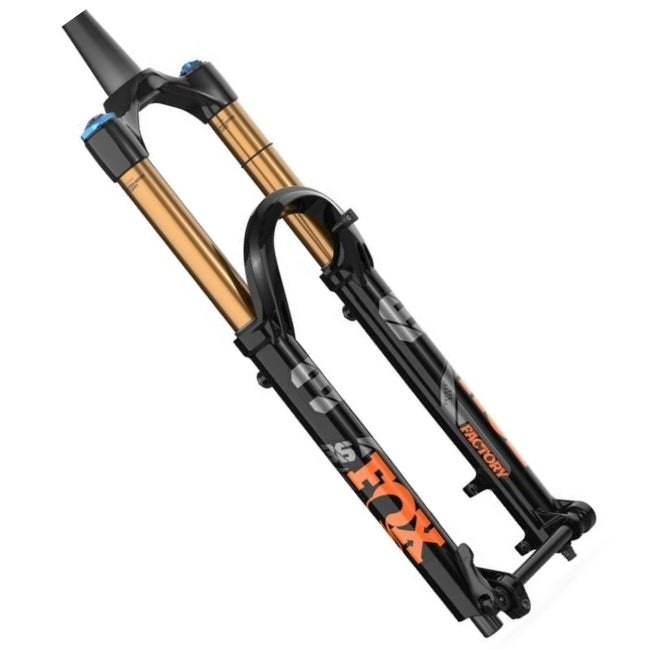

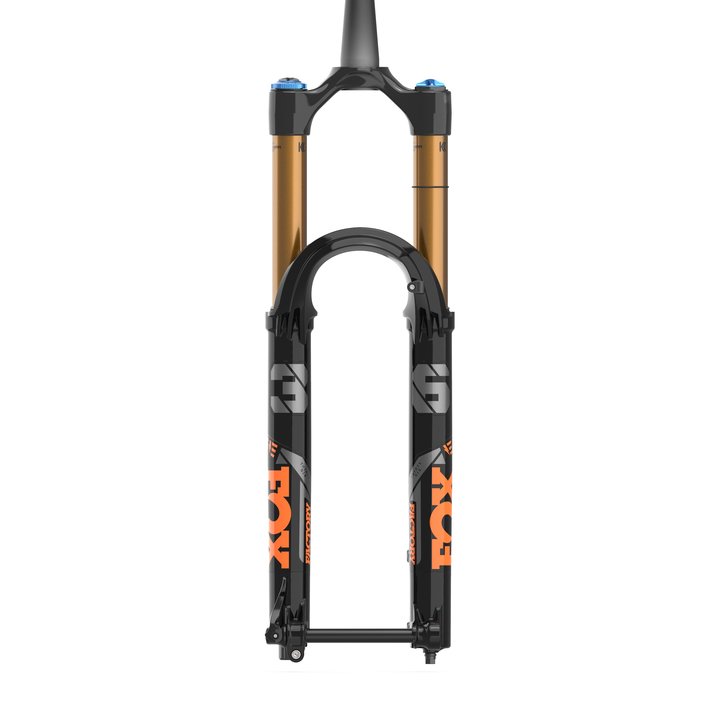

Fox 36 Float 27.5" GRIP2 Factory 2023 - Shiny Black

RRP$1,859.00 $1,399.00

In stock

Order by 1:00pm AEST for same day despatch

Get 10% off this item when purchased with any other Fork, Shock or Seatpost combination! Discount will be applied automatically.

Part number FF91021122



Optimized for aggressive trail riding, the new 2023 36 features an updated crown, and reduced weight.

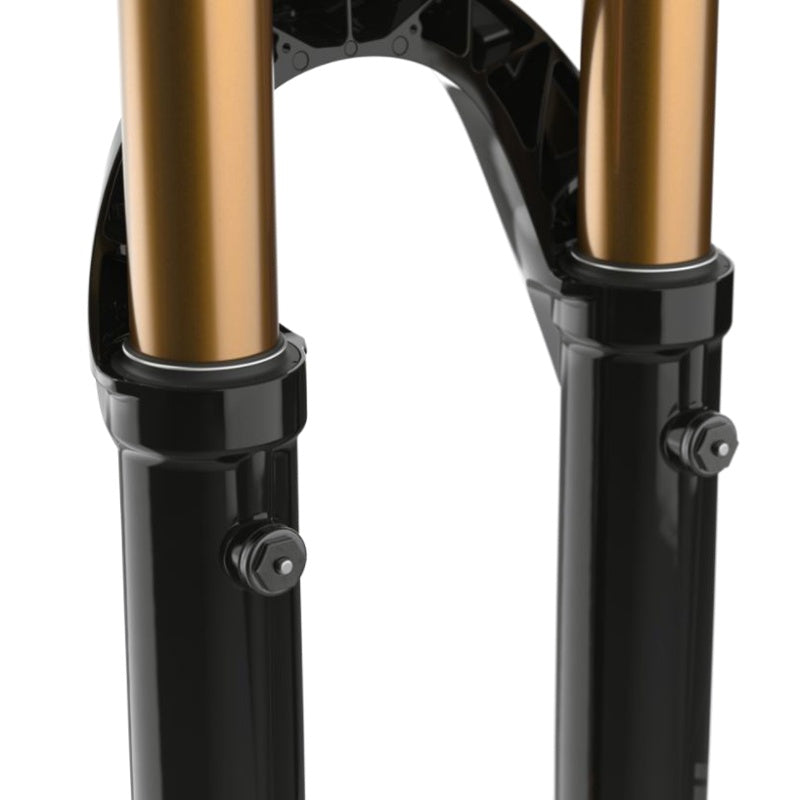

With the new 36, Fox wanted to increase the smoothness, stiffness, and tune-ability of their market-leading fork.  On the smoothness front, an all-new chassis has three key features.  The new floating axle design allows for precise alignment of the hub and the upper and lower fork legs, ensuring the smoothest tracking of terrain.  New channels in the back of the lower legs increase the air volume in the lowers to reduce the amount of unintended pressure ramping, as well as allow more oil flow to the dust wiper foam rings and bushings.  Finally, the bleed valves here allow for atmospheric pressure equalization and release of pressure build-up from long, rough runs, improving small bump sensitivity and responsiveness.



Specifications:

  • Spring: EVOL air spring.
  • Damper GRIP2:  GRIP 2 with VVC, external HSC / LSC and HSR / LSR.
  • Lowers: 15mm x 110mm (Kablt-X or QR axle options)
  • Wheel size: 27.5"
  • Offset:  37mm or 44mm
  • Colour:  Shiny Black
  • Optional bolt-on mud guard available Std size and XL size

Need a 2023 Fox 36 with different travel?  We can supply the MY23 36 at 130mm, 140mm, 150mm, 160mm or 170mm.  No extra charge.  Just ask!

Find your Fox manual here, parts list here, specifications here and volume spacer configuration information here.

Find service information for your Fox suspension here.
